Mechanical Design
3D models, detail drawings and design development for parts, assemblies and complete mechanical systems.
Design Solutions
Mechanical design that carries through to use and manufacture.
From a machine concept to a facility system, we work through the details that determine whether a design will perform in its intended setting.
Design with purpose
Understand the process before defining the machine.
We first examine the task the equipment or system must perform: process, cycle, environment, interfaces and constraints. This technical context guides our mechanical design, SPM or HVAC contribution.
Our team supports mechanical design, custom machinery and HVAC projects, with the scope shaped by the intended operation.
Our capabilities
Three engineering disciplines. One application-led approach.
Select the discipline closest to your brief; we’ll shape the scope around the process and site.
SPM Solutions
Custom machinery and turnkey engineering for defined production, handling and testing operations.
HVAC
Heating, ventilation and air-conditioning solutions considered against building use, process loads and operating conditions.
Project portfolio
Equipment and systems in operation
Design work and site installations across a range of industrial applications.
PAVEMENT SOLUTIONS

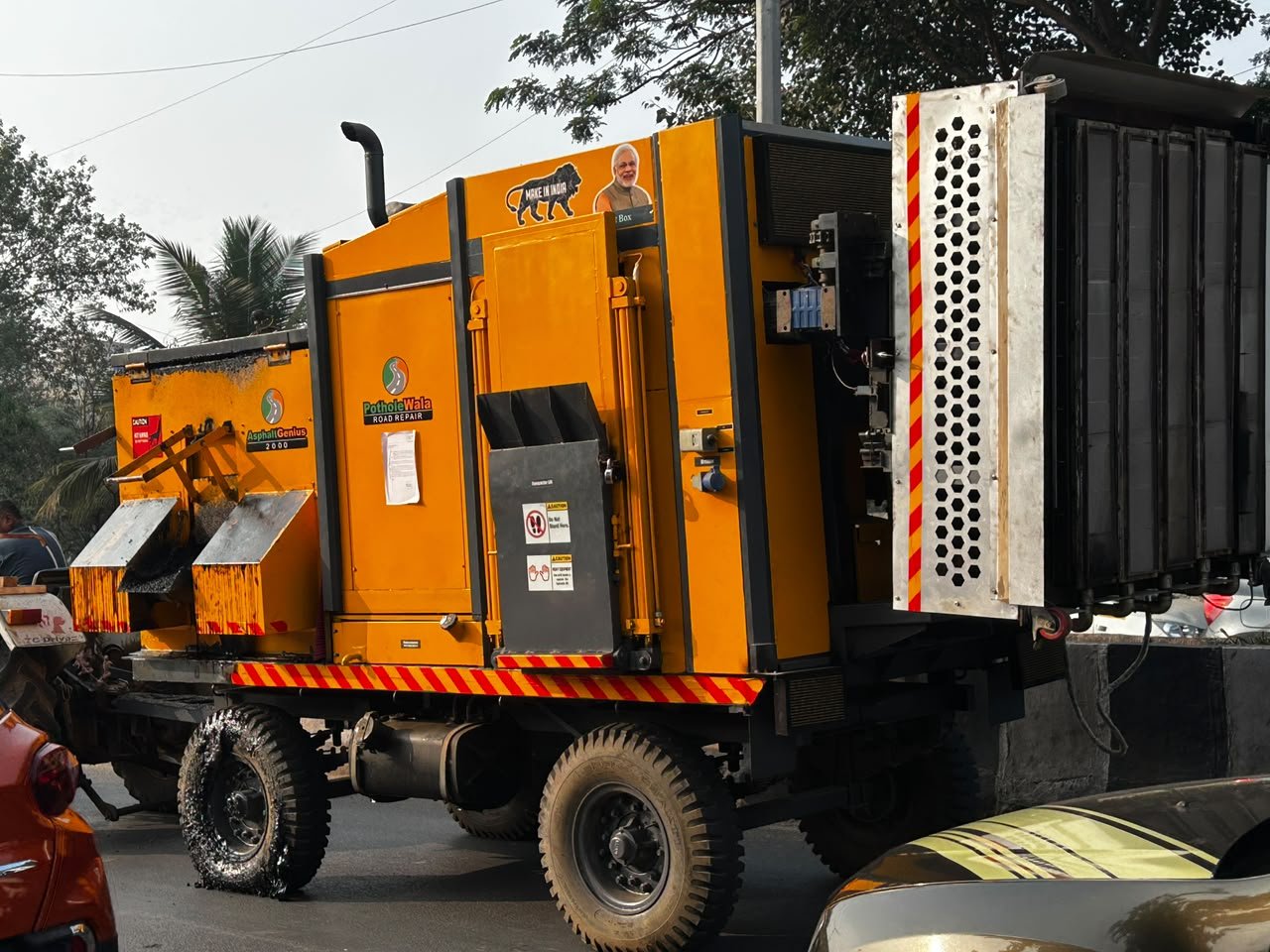

PRO RMV 2T · ProGenius Pavement
A ProGenius road-repair machine photographed at work on site.
MACHINE DESIGN · CAD & FEA

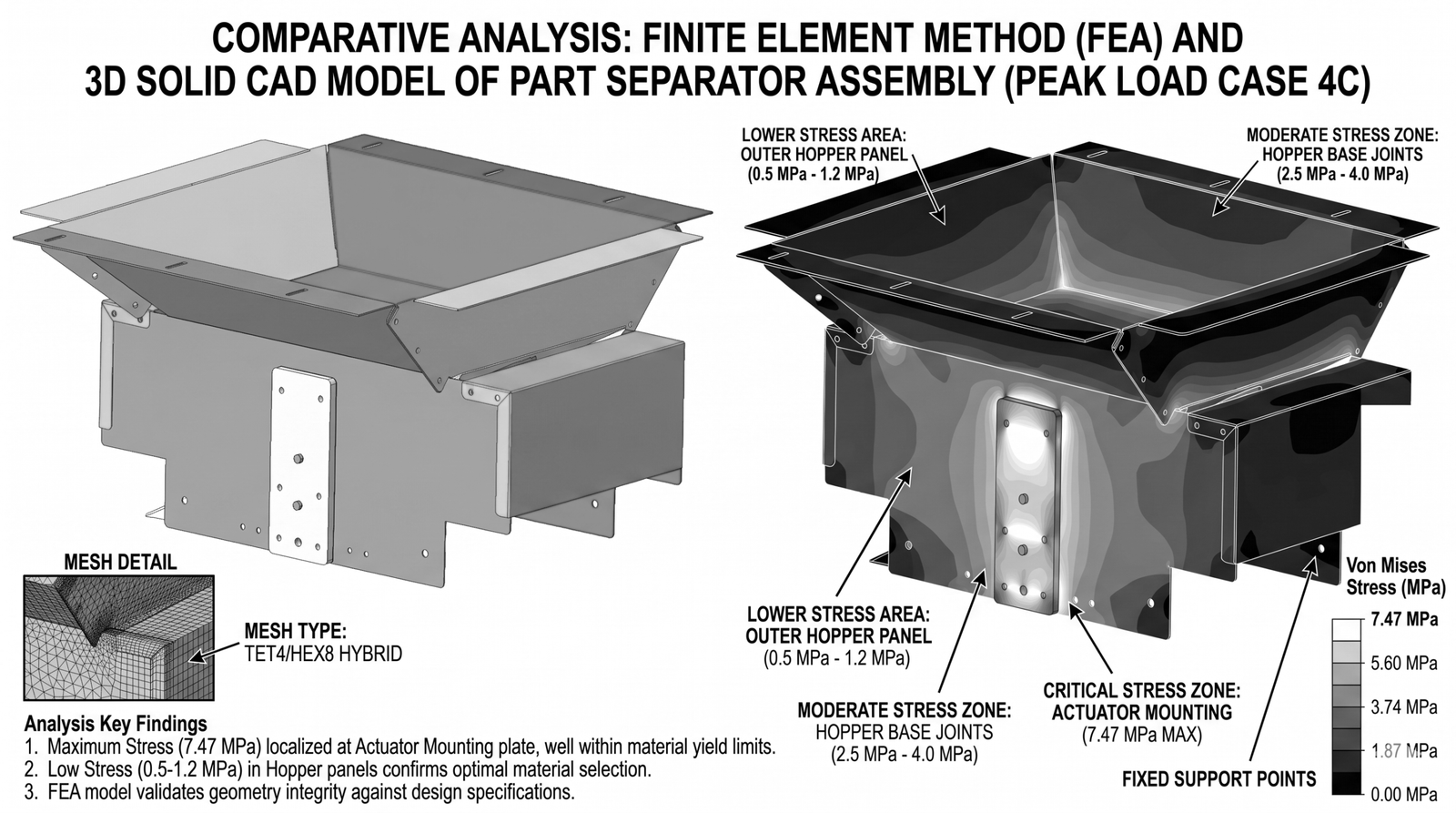

Part Separator
Part separator concept shown with CAD geometry and an illustrative stress-analysis view.
PROCESS DESIGN VISUALIZATION

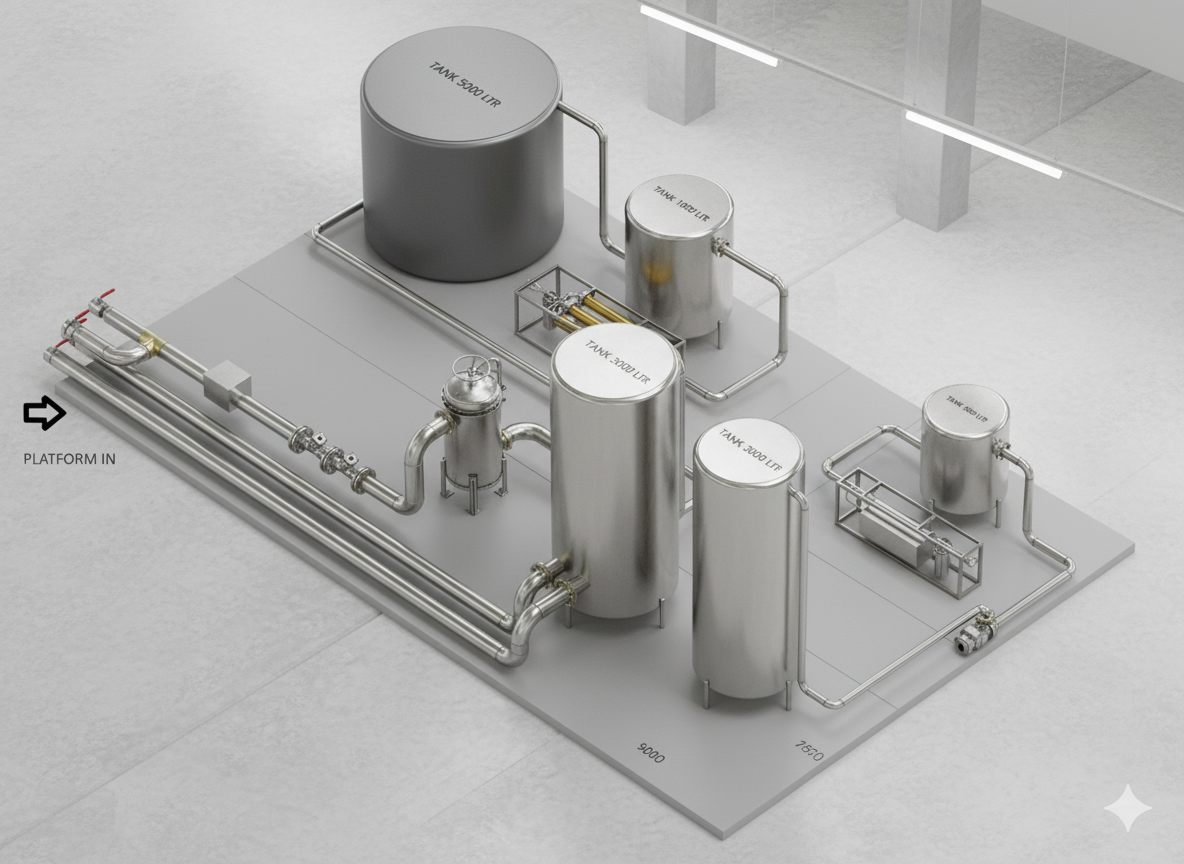

RO Plant · Deionisation
RO and deionisation process layout presented as a plant concept.
PROCESS SYSTEMS

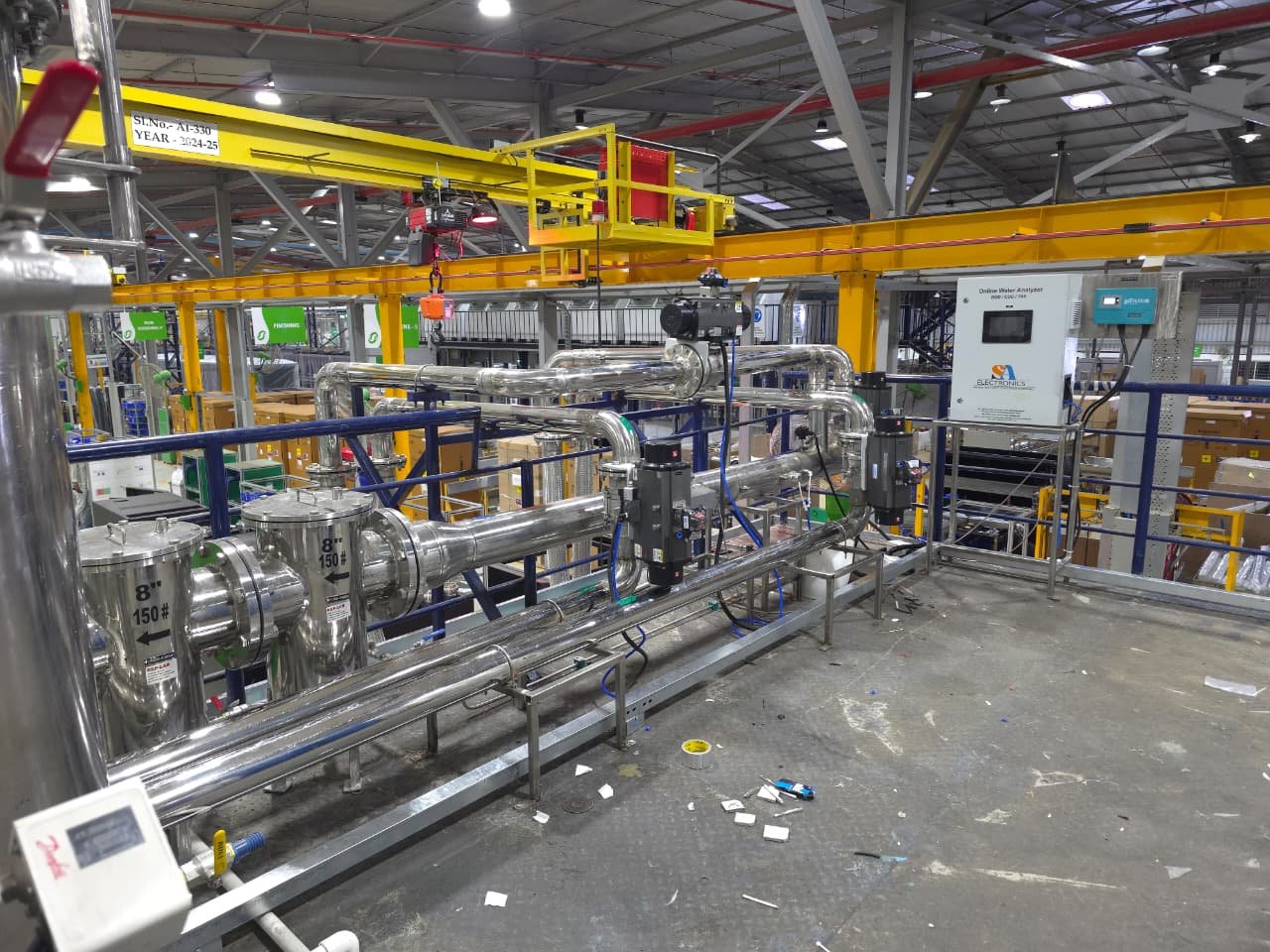

Hydrogen Test Rig
Hydrogen test-rig installation with stainless-steel pipework and process instrumentation.
PROCESS EQUIPMENT

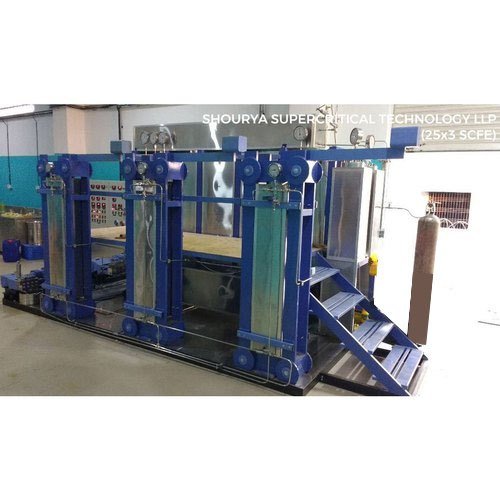

CO₂ Extraction Plant
CO₂ extraction equipment photographed at the installation site.
MECHANICAL DESIGN

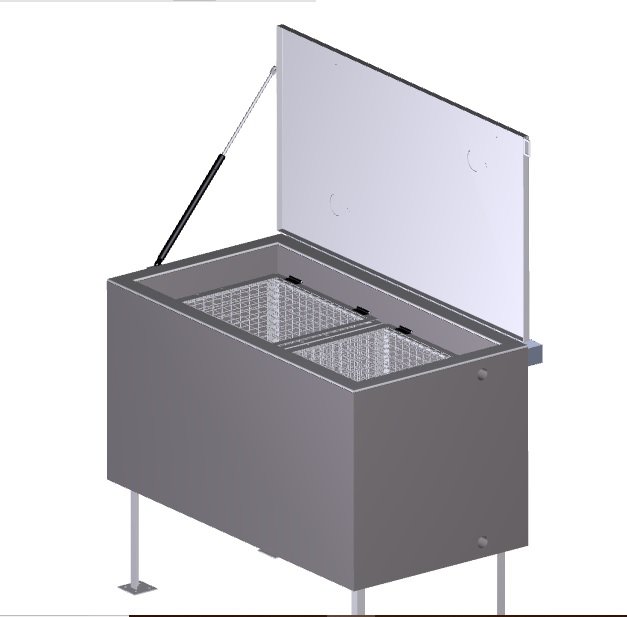

Annealing Tank
Annealing tank model prepared for an industrial application.
MATERIAL HANDLING
Day Bin System
Day-bin equipment designed to hold and feed material into the process.
ON-SITE PHOTOS · DAY BIN SYSTEM
Day Bins & Material Handling System
Installed day bins and feed equipment at the operating facility.

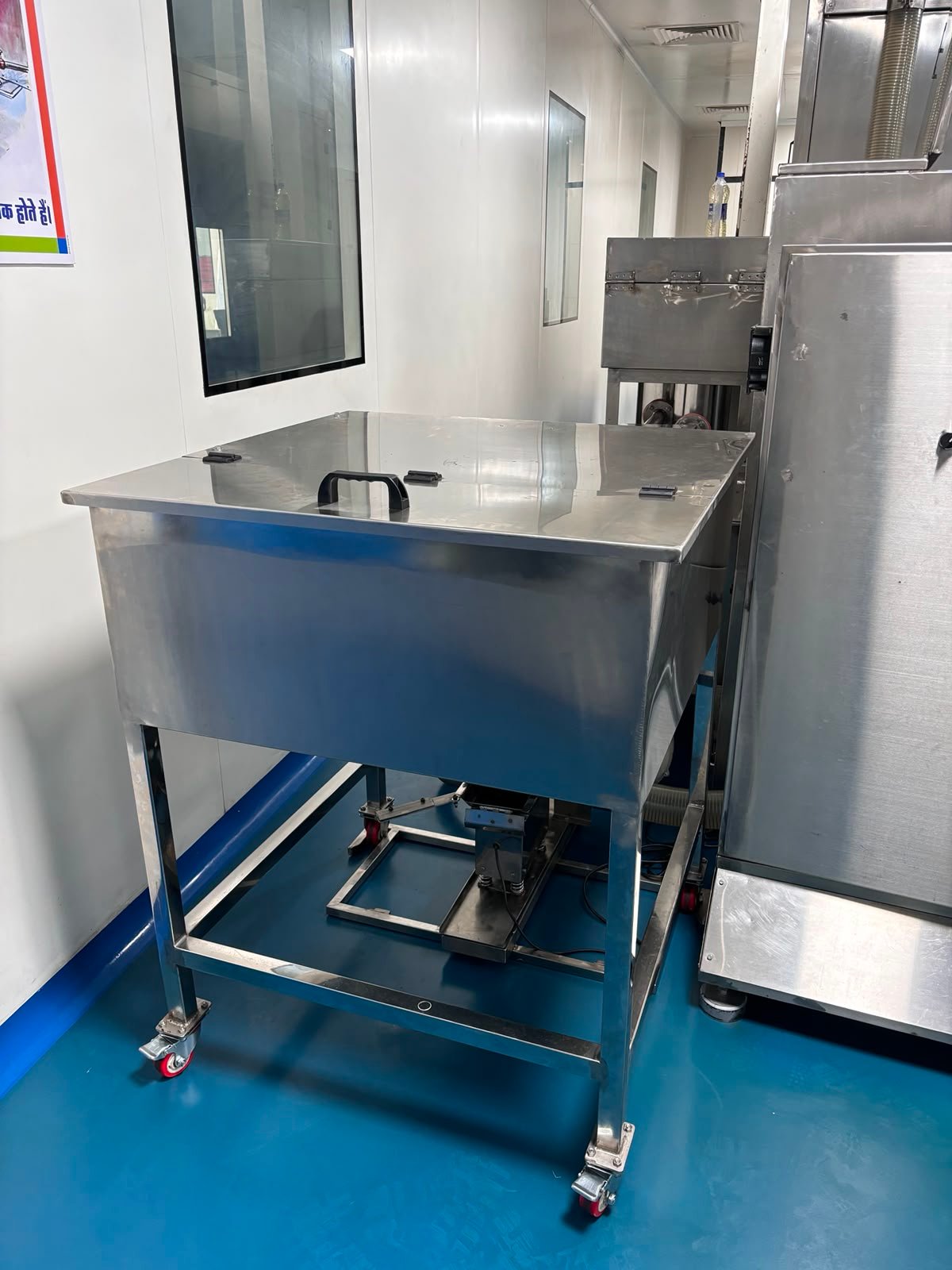

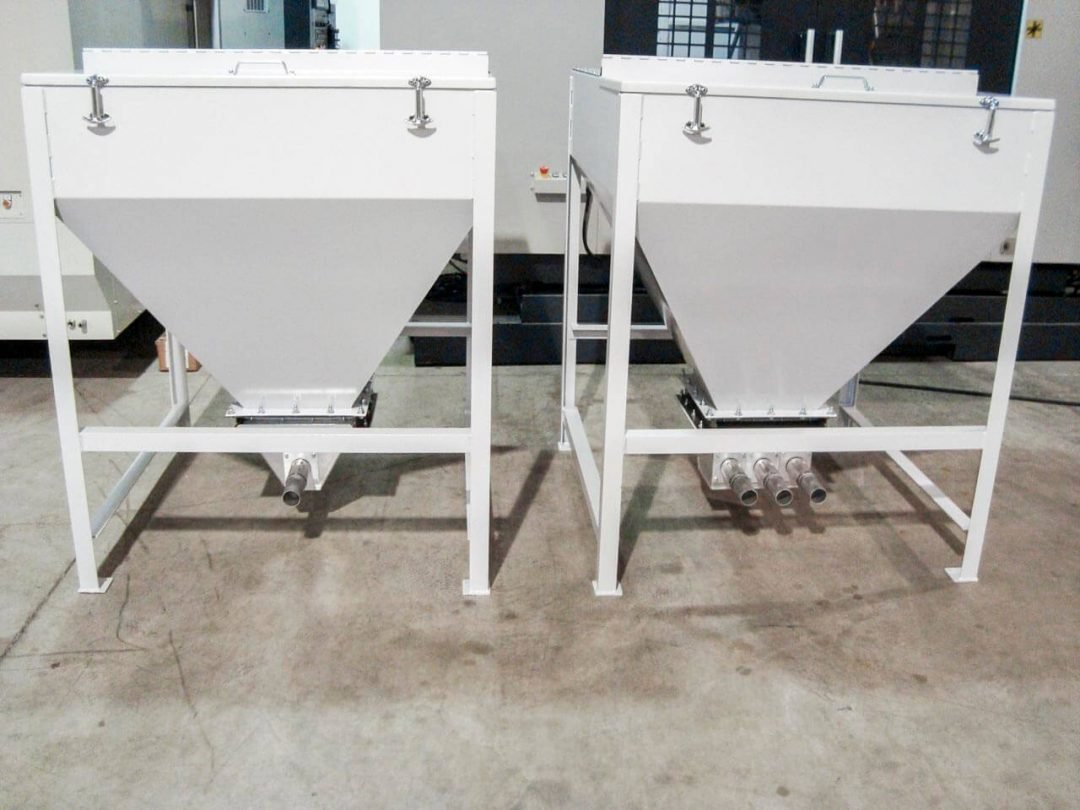

Day Bin Unit

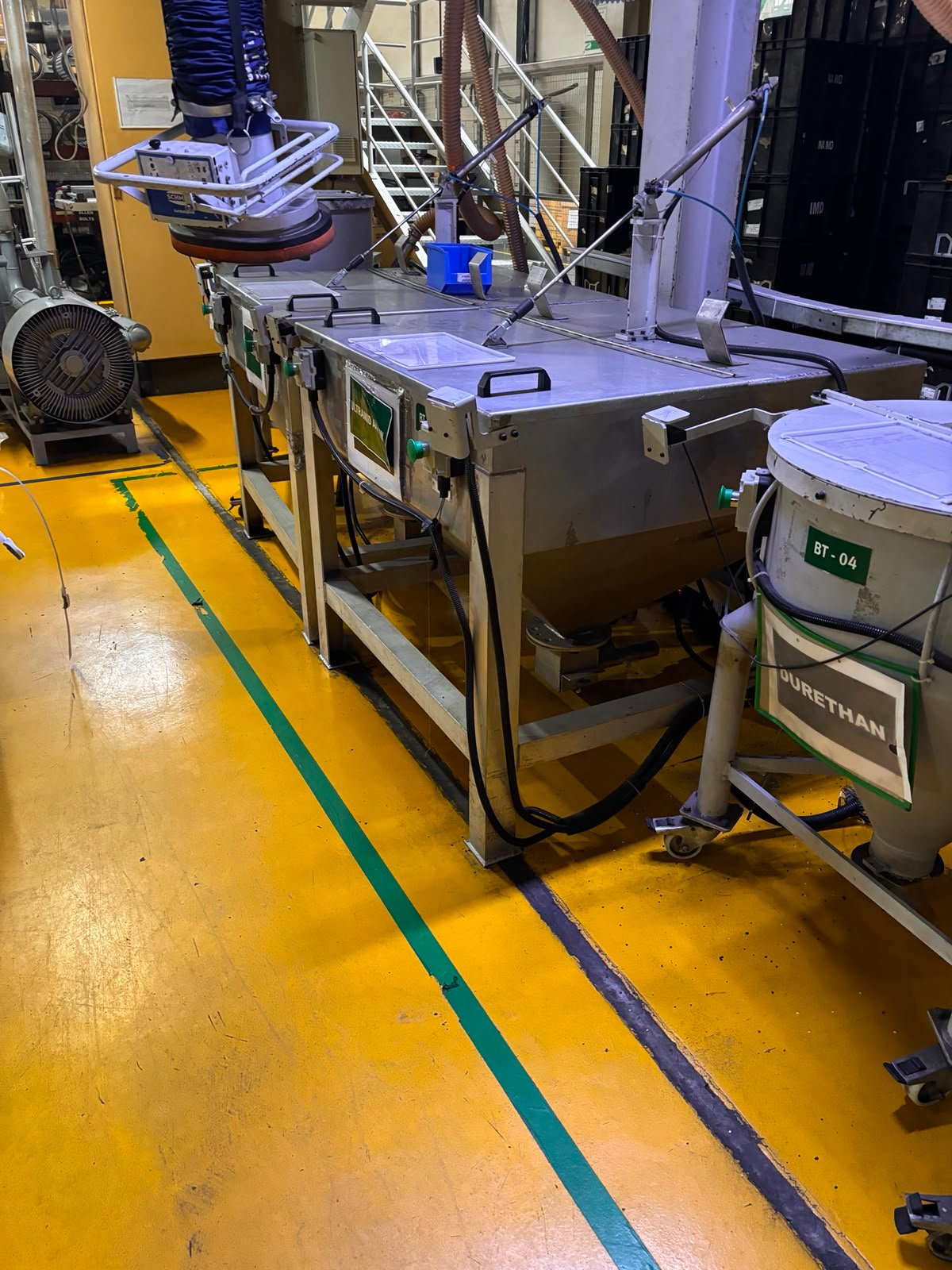

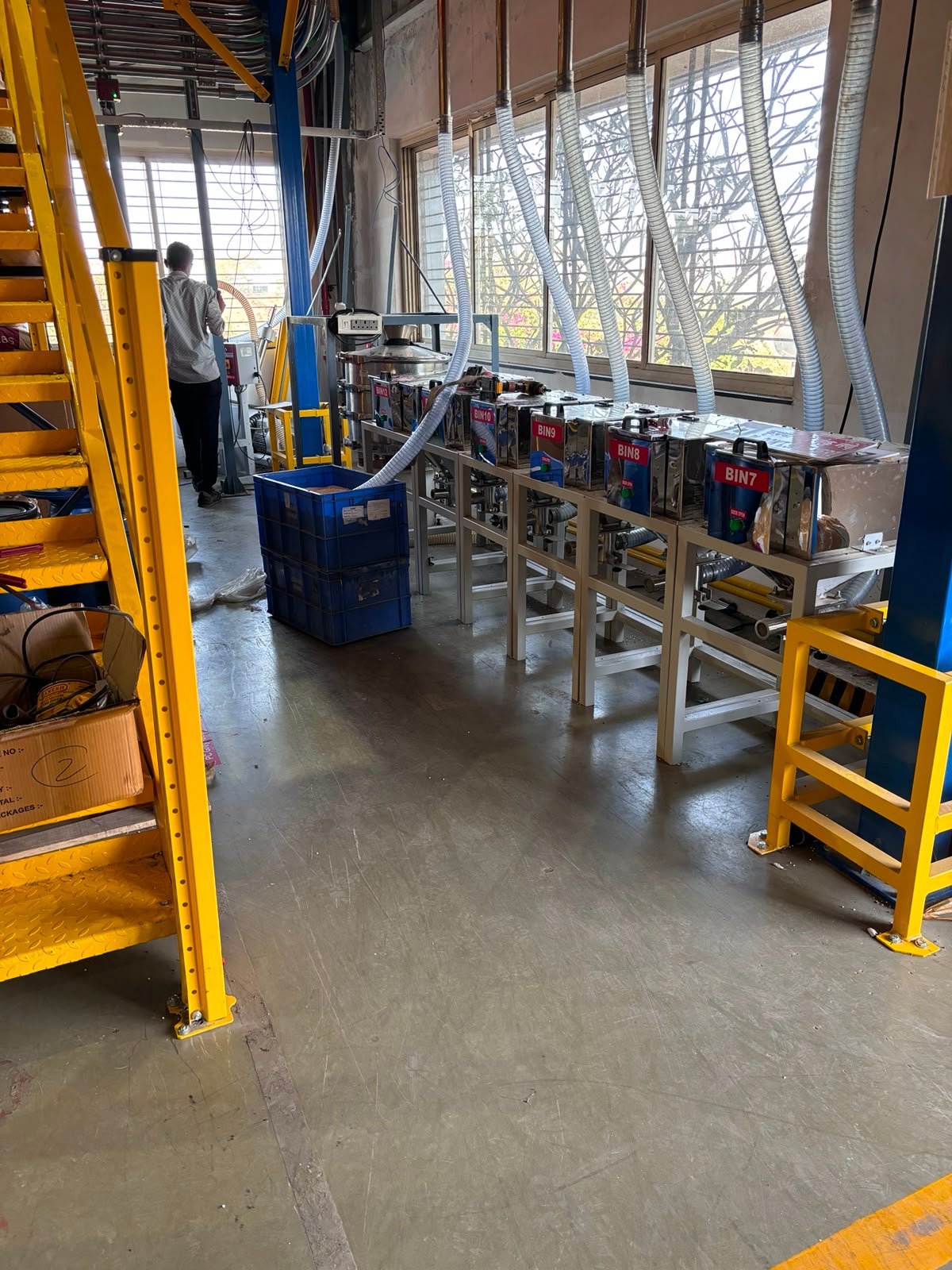

Connected Bin Feed System
On-Site Process Equipment
ON-SITE PHOTOS · STRUCTURES & SYSTEMS

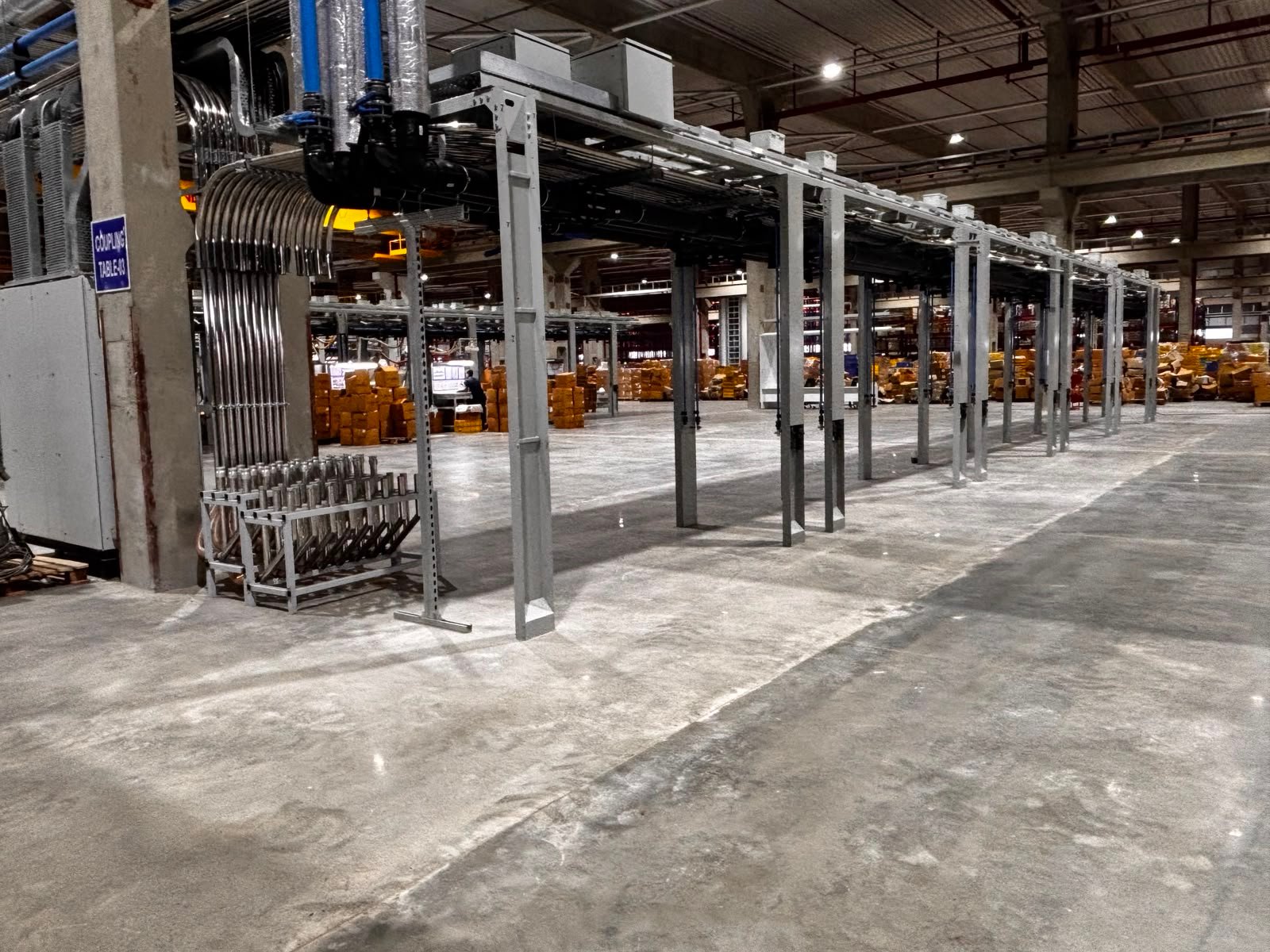

Industrial Structures & Process System
Site photographs of process supports, overhead pipe routes and the facility framework.

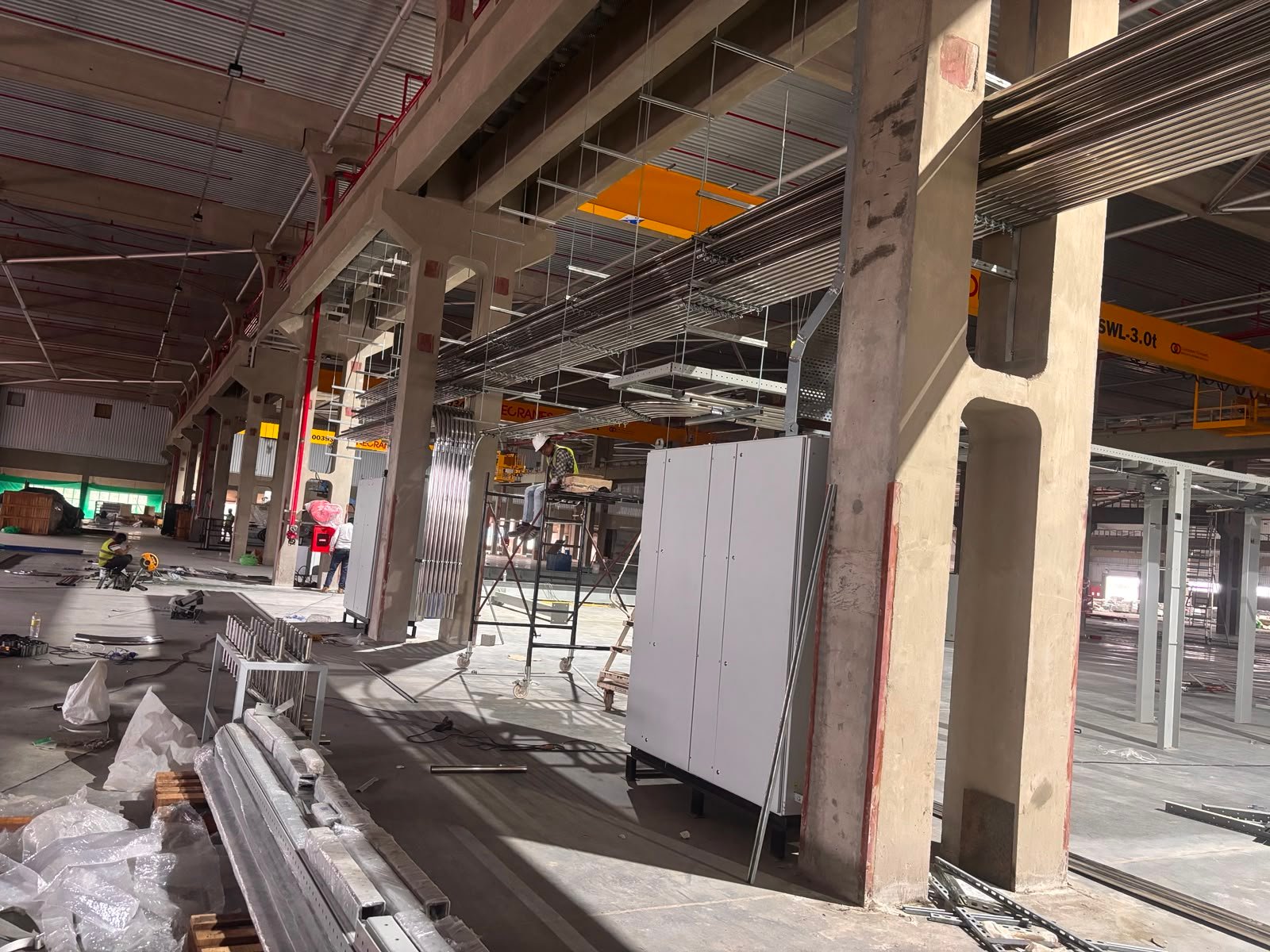

Industrial Facility Structure

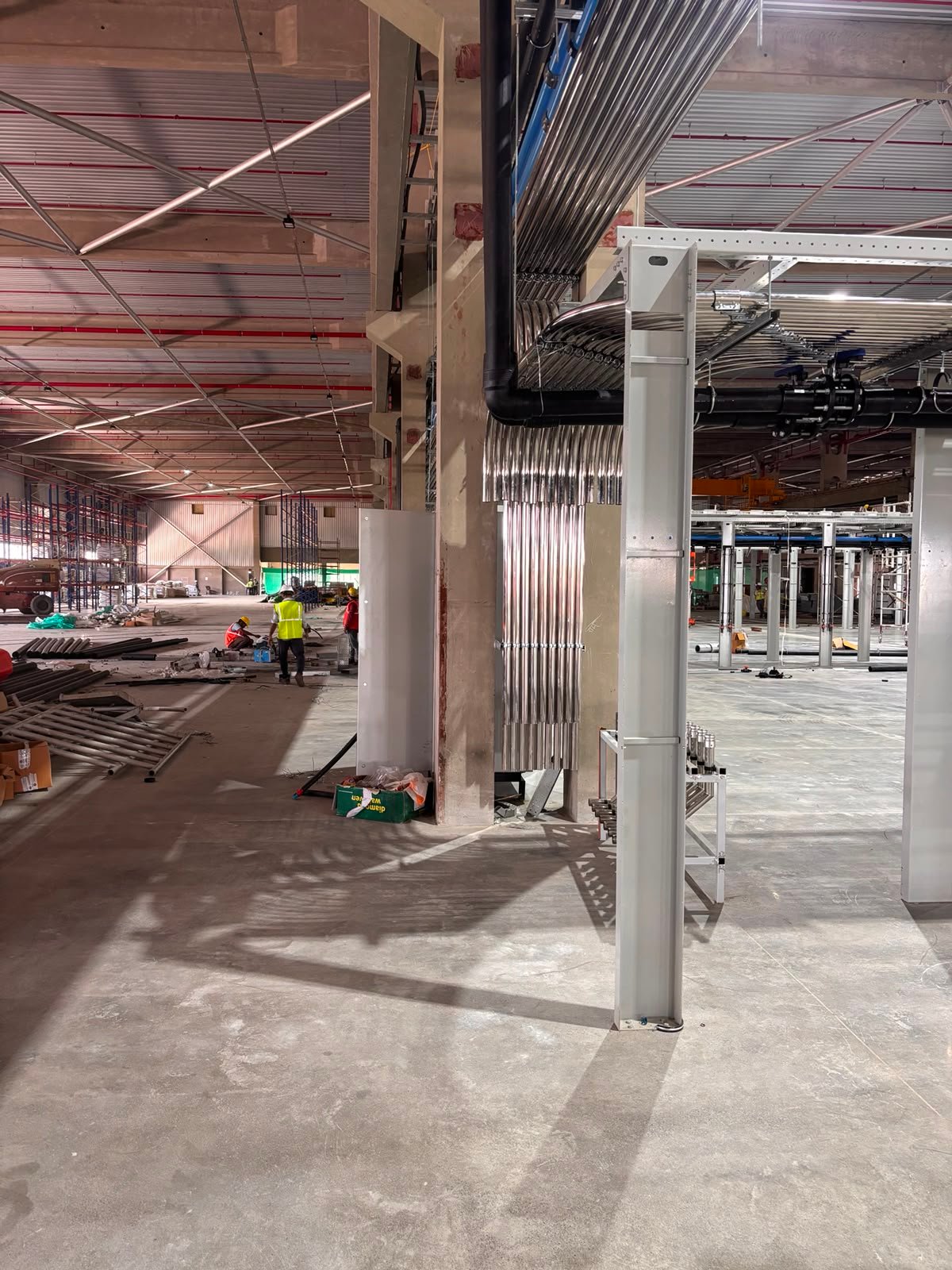

Pipework and Structural Supports
Process System Framework

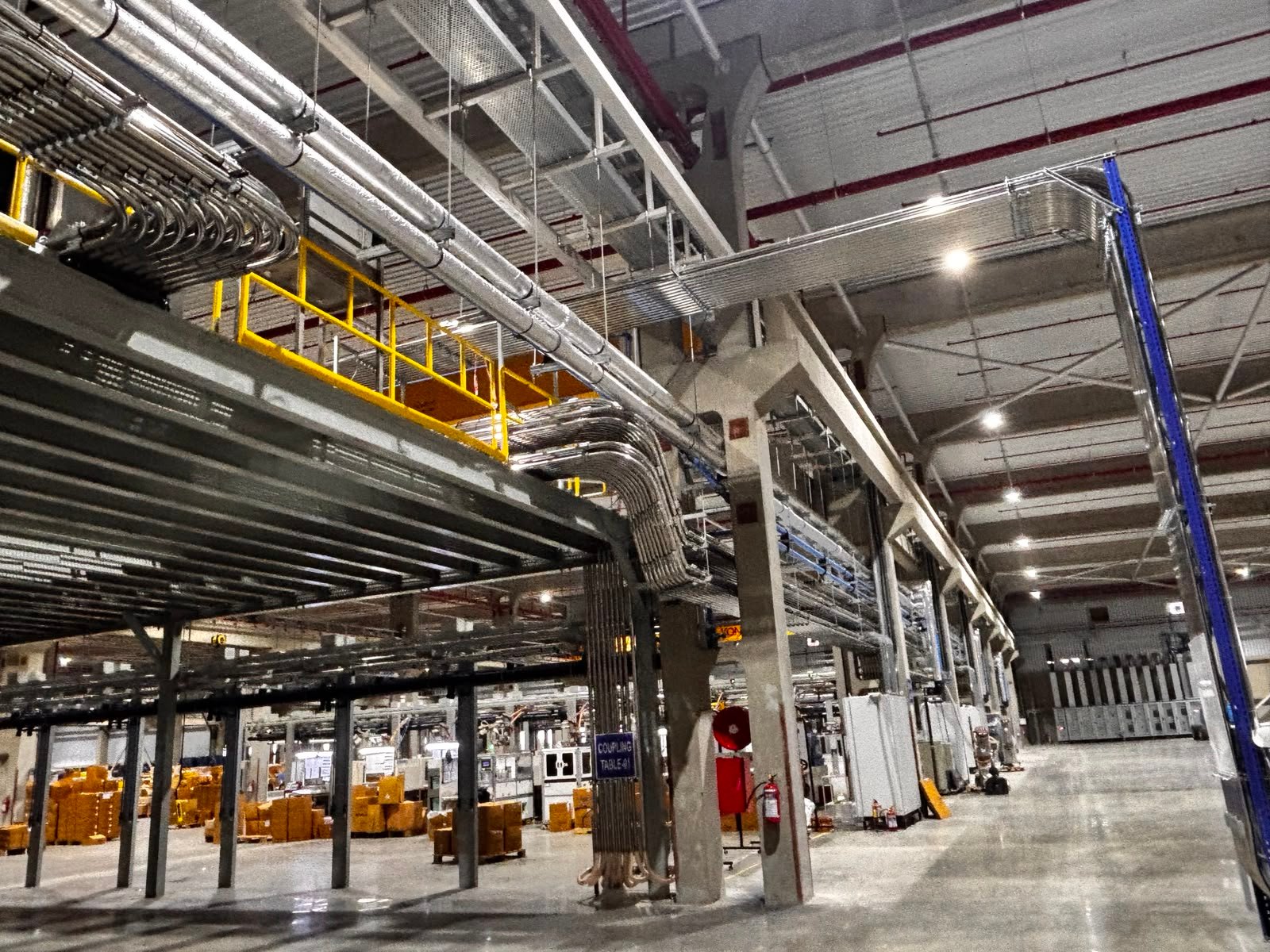

Elevated Pipework
More project work: Hydrogen test rigs, electrical control panels and other application-specific engineering projects.
From technical brief to coordinated delivery
Good coordination keeps design decisions connected to the project.
We make the key decisions visible and coordinate the work with the people involved.
01
Understand
Review the process, intended output and operating conditions.
02
Define
Define deliverables, interfaces and information needed.
03
Develop
Develop the design around function, fabrication and installation.
04
Coordinate
Coordinate reviews, changes and handover with the project team.
Developing a machine or upgrading a facility? Send the process details, operating conditions and design inputs already available.
Start with the technical brief.
Tell us what the equipment must do and where it will operate.
